The Porsche 944 DME

Here are some Porsche Motronic DME computer illustrations-schematics-diagrams found and catagorized. Also see the Porsche DME Relay.

They are all very small (20-40K)

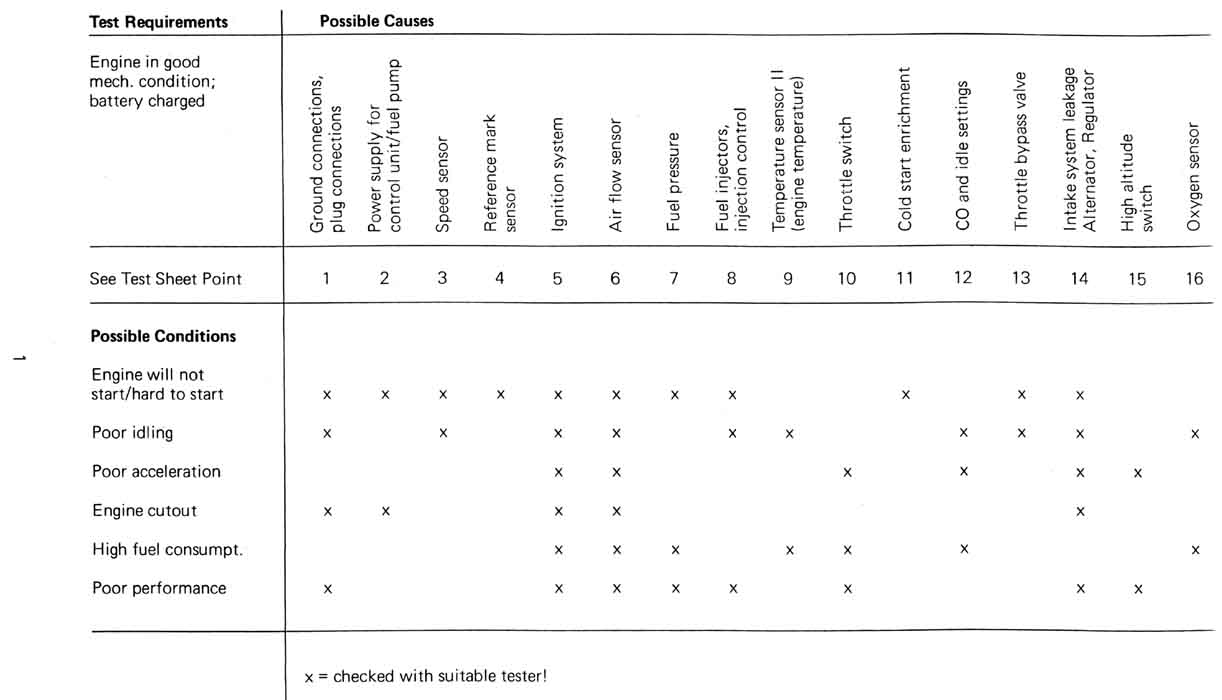

  • DME01 General Overview

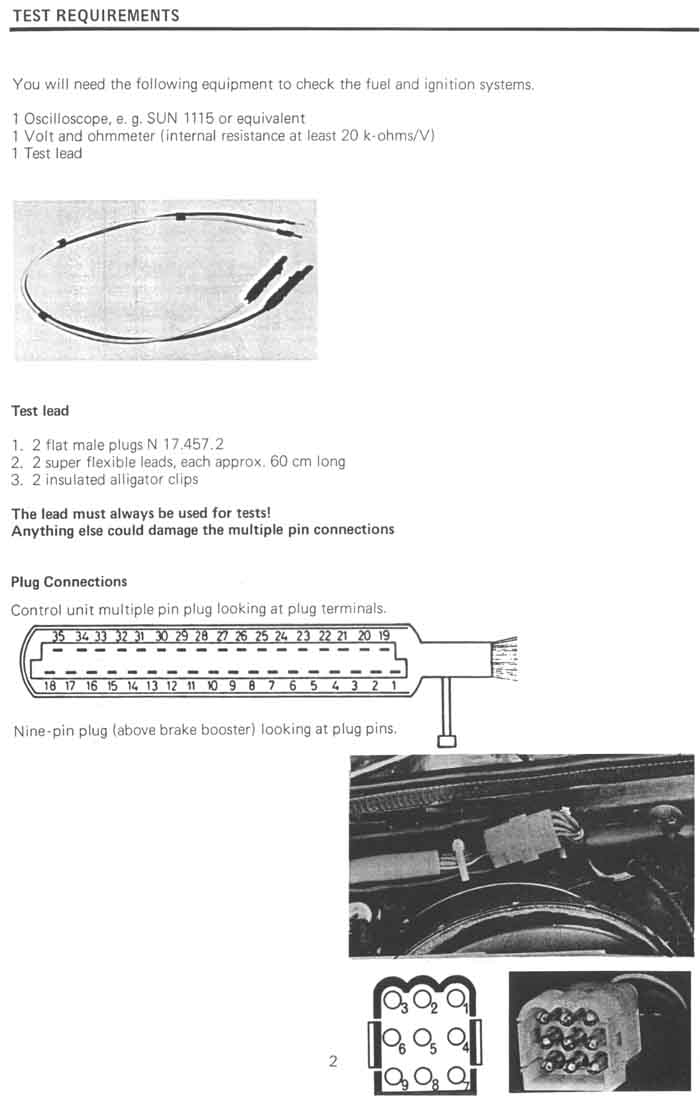

  • DME02 Test Requirements
  • DME03 The Throttle Switch
  • DME07 DME Test Values, Test Point 4

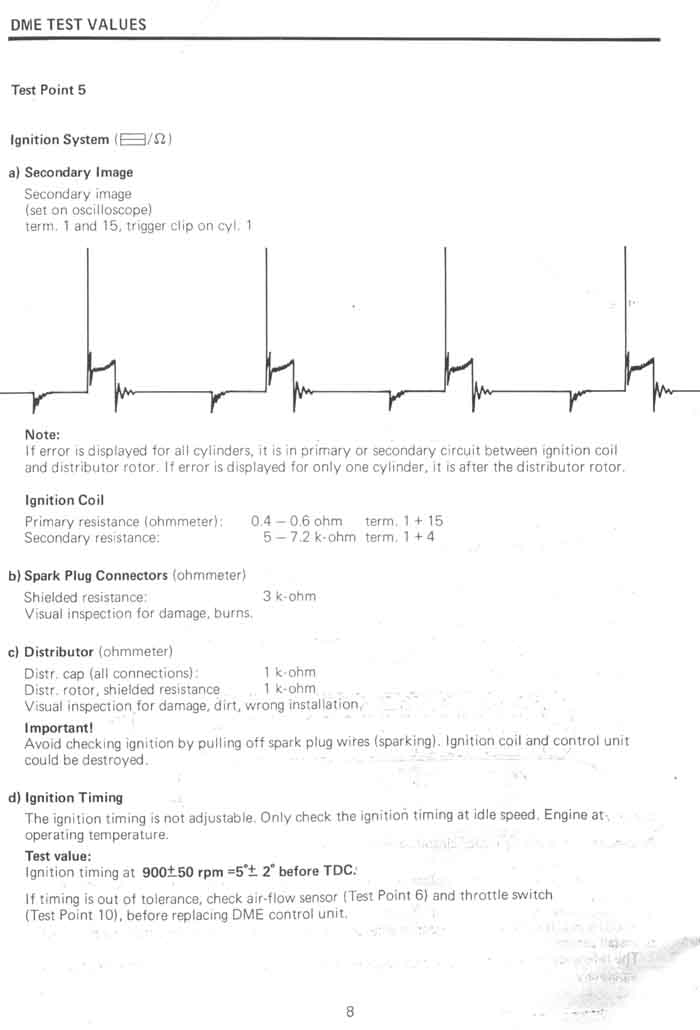

  • DME08 DME Test Values, Test Point 5

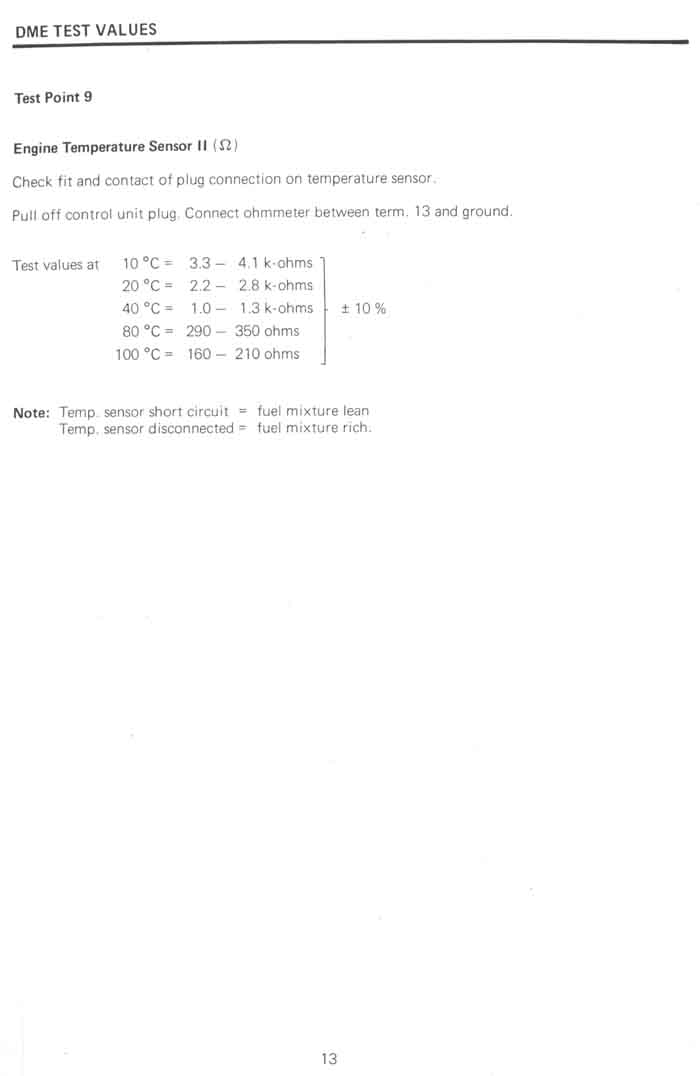

  • DME13 DME Test Values, Test Point 9

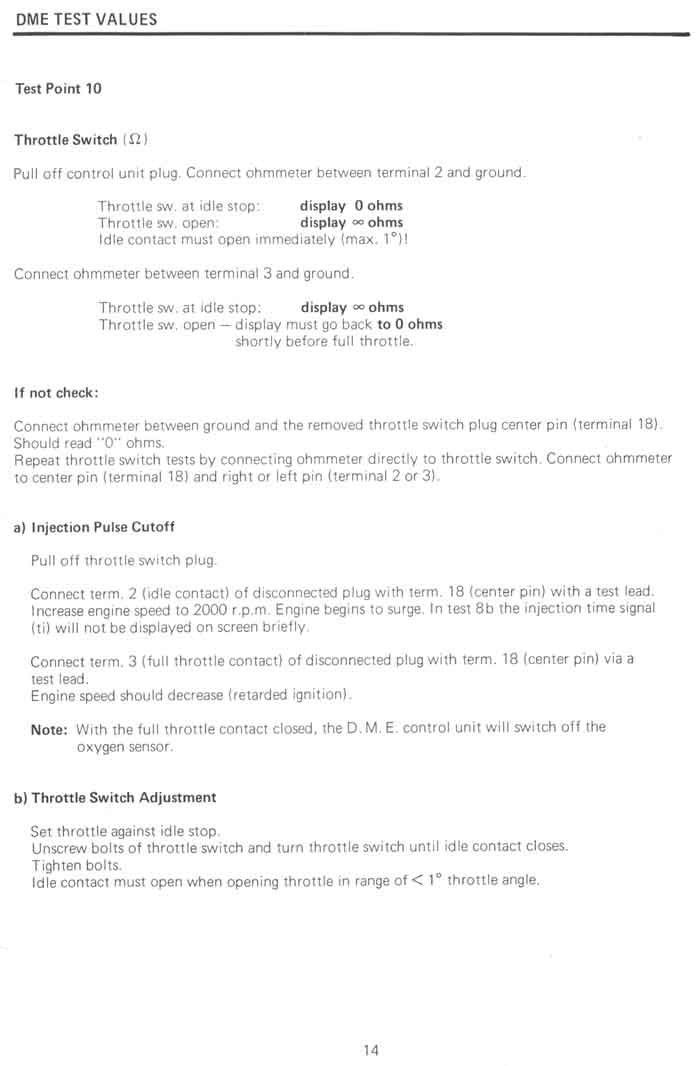

  • DME14 DME Test Values, Test Point 10 (throttle switch)

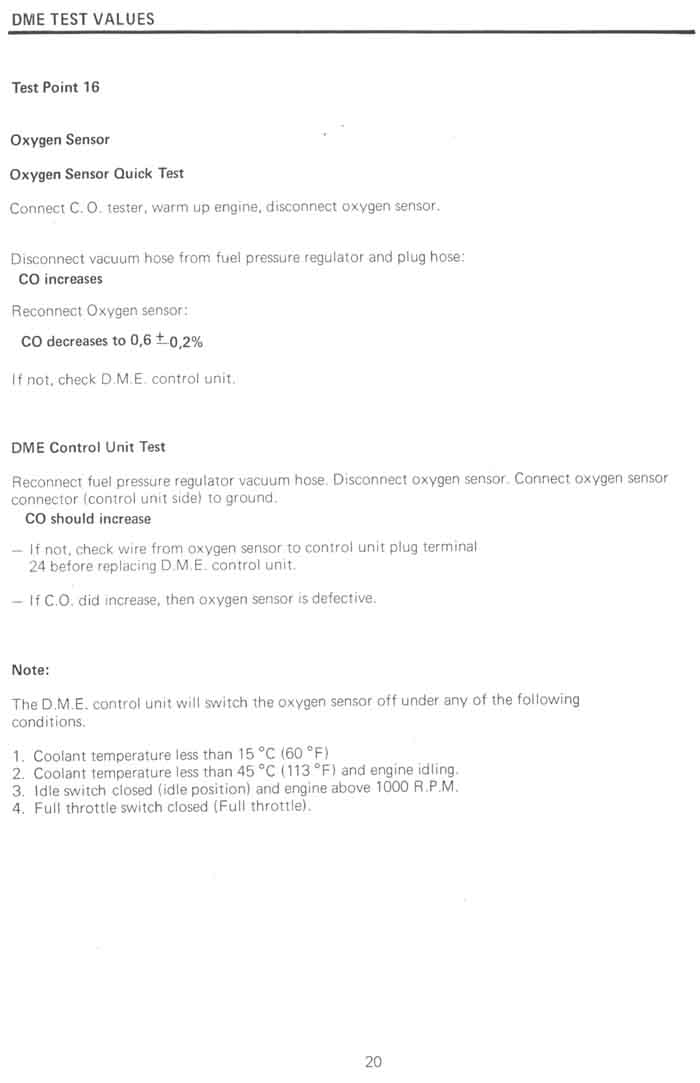

  • DME20 DME Test Values, Test Point 16 (oxygen sensor)

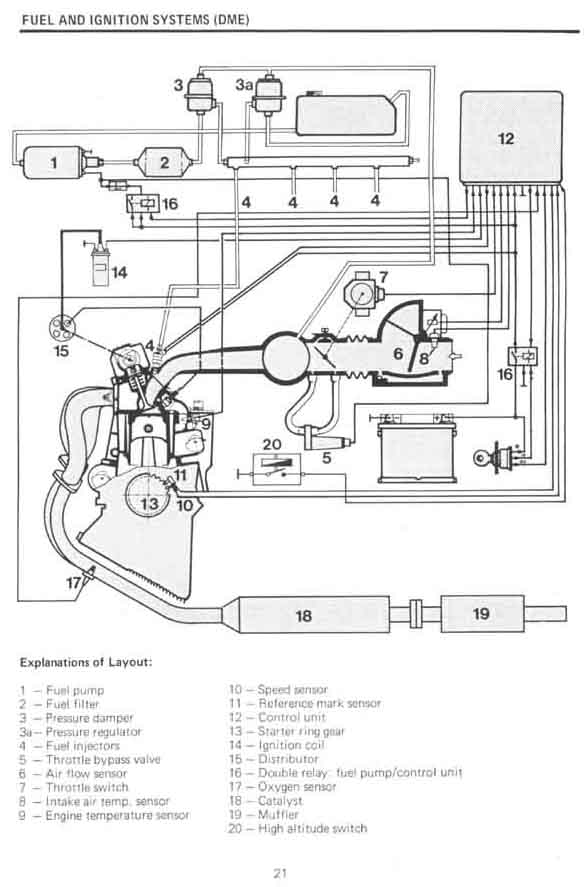

  • DME21 General Layout
  • DME23 DME Wiring Diagram
